Product Summary
Advanced architectural ceramics, because of their special crystal framework and chemical bond features, reveal efficiency advantages that metals and polymer products can not match in severe environments. Alumina (Al ₂ O FIVE), zirconium oxide (ZrO ₂), silicon carbide (SiC) and silicon nitride (Si six N ₄) are the 4 major mainstream design ceramics, and there are crucial distinctions in their microstructures: Al ₂ O two belongs to the hexagonal crystal system and depends on solid ionic bonds; ZrO ₂ has three crystal types: monoclinic (m), tetragonal (t) and cubic (c), and obtains unique mechanical residential or commercial properties via phase change toughening system; SiC and Si ₃ N ₄ are non-oxide porcelains with covalent bonds as the main element, and have more powerful chemical stability. These structural distinctions directly cause significant distinctions in the preparation procedure, physical homes and design applications of the 4. This post will methodically evaluate the preparation-structure-performance connection of these four ceramics from the perspective of products science, and explore their potential customers for commercial application.
(Alumina Ceramic)
Prep work procedure and microstructure control
In regards to preparation process, the 4 porcelains show noticeable differences in technical routes. Alumina ceramics utilize a reasonably conventional sintering process, usually utilizing α-Al ₂ O two powder with a purity of more than 99.5%, and sintering at 1600-1800 ° C after dry pressing. The trick to its microstructure control is to hinder uncommon grain development, and 0.1-0.5 wt% MgO is typically added as a grain boundary diffusion prevention. Zirconia ceramics require to introduce stabilizers such as 3mol% Y ₂ O three to retain the metastable tetragonal phase (t-ZrO two), and use low-temperature sintering at 1450-1550 ° C to stay clear of extreme grain growth. The core process difficulty lies in precisely managing the t → m stage change temperature window (Ms factor). Given that silicon carbide has a covalent bond proportion of up to 88%, solid-state sintering needs a high temperature of more than 2100 ° C and counts on sintering aids such as B-C-Al to form a liquid stage. The response sintering technique (RBSC) can achieve densification at 1400 ° C by infiltrating Si+C preforms with silicon thaw, however 5-15% free Si will certainly stay. The preparation of silicon nitride is one of the most complicated, usually making use of general practitioner (gas pressure sintering) or HIP (hot isostatic pushing) procedures, adding Y TWO O FOUR-Al ₂ O three series sintering help to create an intercrystalline glass stage, and warmth treatment after sintering to take shape the glass phase can considerably boost high-temperature performance.
( Zirconia Ceramic)
Contrast of mechanical buildings and reinforcing system
Mechanical properties are the core evaluation indicators of architectural porcelains. The 4 kinds of products show completely various strengthening mechanisms:
( Mechanical properties comparison of advanced ceramics)
Alumina mainly depends on great grain fortifying. When the grain dimension is minimized from 10μm to 1μm, the stamina can be increased by 2-3 times. The outstanding durability of zirconia comes from the stress-induced phase makeover device. The stress area at the crack tip causes the t → m phase improvement accompanied by a 4% quantity expansion, causing a compressive stress and anxiety shielding effect. Silicon carbide can improve the grain boundary bonding toughness with strong remedy of components such as Al-N-B, while the rod-shaped β-Si four N four grains of silicon nitride can create a pull-out impact similar to fiber toughening. Crack deflection and bridging add to the improvement of toughness. It deserves keeping in mind that by building multiphase porcelains such as ZrO TWO-Si Four N ₄ or SiC-Al ₂ O FOUR, a selection of strengthening systems can be coordinated to make KIC exceed 15MPa · m 1ST/ ².
Thermophysical properties and high-temperature actions
High-temperature security is the crucial advantage of structural ceramics that differentiates them from traditional products:
(Thermophysical properties of engineering ceramics)
Silicon carbide shows the very best thermal administration efficiency, with a thermal conductivity of up to 170W/m · K(equivalent to light weight aluminum alloy), which is due to its easy Si-C tetrahedral structure and high phonon proliferation rate. The low thermal development coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have superb thermal shock resistance, and the crucial ΔT worth can reach 800 ° C, which is particularly ideal for duplicated thermal cycling atmospheres. Although zirconium oxide has the highest melting factor, the softening of the grain limit glass stage at high temperature will cause a sharp drop in stamina. By taking on nano-composite innovation, it can be raised to 1500 ° C and still keep 500MPa stamina. Alumina will certainly experience grain border slip over 1000 ° C, and the addition of nano ZrO ₂ can develop a pinning impact to inhibit high-temperature creep.
Chemical security and deterioration habits
In a harsh setting, the 4 types of ceramics display substantially various failure devices. Alumina will certainly dissolve on the surface in solid acid (pH <2) and strong alkali (pH > 12) remedies, and the rust rate boosts greatly with raising temperature level, reaching 1mm/year in boiling concentrated hydrochloric acid. Zirconia has good tolerance to not natural acids, but will undergo reduced temperature deterioration (LTD) in water vapor atmospheres above 300 ° C, and the t → m phase transition will certainly cause the formation of a tiny split network. The SiO ₂ protective layer formed on the surface of silicon carbide provides it superb oxidation resistance below 1200 ° C, but soluble silicates will certainly be generated in liquified antacids metal environments. The rust actions of silicon nitride is anisotropic, and the deterioration price along the c-axis is 3-5 times that of the a-axis. NH Two and Si(OH)₄ will certainly be produced in high-temperature and high-pressure water vapor, resulting in material cleavage. By optimizing the make-up, such as preparing O’-SiAlON ceramics, the alkali rust resistance can be enhanced by greater than 10 times.

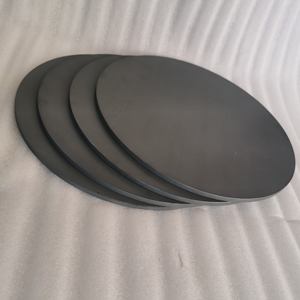

( Silicon Carbide Disc)
Typical Engineering Applications and Instance Studies
In the aerospace area, NASA makes use of reaction-sintered SiC for the leading side components of the X-43A hypersonic airplane, which can endure 1700 ° C aerodynamic home heating. GE Air travel makes use of HIP-Si two N ₄ to make wind turbine rotor blades, which is 60% lighter than nickel-based alloys and allows greater operating temperature levels. In the clinical field, the crack strength of 3Y-TZP zirconia all-ceramic crowns has actually gotten to 1400MPa, and the life span can be included greater than 15 years through surface slope nano-processing. In the semiconductor sector, high-purity Al ₂ O four ceramics (99.99%) are utilized as cavity materials for wafer etching devices, and the plasma rust price is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm elements < 0.1 mm ), and high manufacturing price of silicon nitride(aerospace-grade HIP-Si ₃ N four gets to $ 2000/kg). The frontier advancement instructions are concentrated on: 1st Bionic structure style(such as shell layered framework to enhance toughness by 5 times); two Ultra-high temperature level sintering modern technology( such as stimulate plasma sintering can achieve densification within 10 minutes); four Intelligent self-healing ceramics (consisting of low-temperature eutectic stage can self-heal fractures at 800 ° C); four Additive production modern technology (photocuring 3D printing accuracy has actually gotten to ± 25μm).
( Silicon Nitride Ceramics Tube)
Future development trends
In a detailed comparison, alumina will still control the typical ceramic market with its expense benefit, zirconia is irreplaceable in the biomedical field, silicon carbide is the preferred material for severe environments, and silicon nitride has great possible in the area of premium tools. In the next 5-10 years, with the assimilation of multi-scale architectural regulation and smart production innovation, the performance borders of engineering ceramics are expected to attain brand-new advancements: for instance, the design of nano-layered SiC/C ceramics can accomplish toughness of 15MPa · m ¹/ TWO, and the thermal conductivity of graphene-modified Al two O five can be raised to 65W/m · K. With the advancement of the “double carbon” approach, the application range of these high-performance porcelains in brand-new energy (gas cell diaphragms, hydrogen storage space materials), eco-friendly manufacturing (wear-resistant components life increased by 3-5 times) and various other fields is anticipated to preserve an average annual development price of greater than 12%.
